Wall mounted battery pack

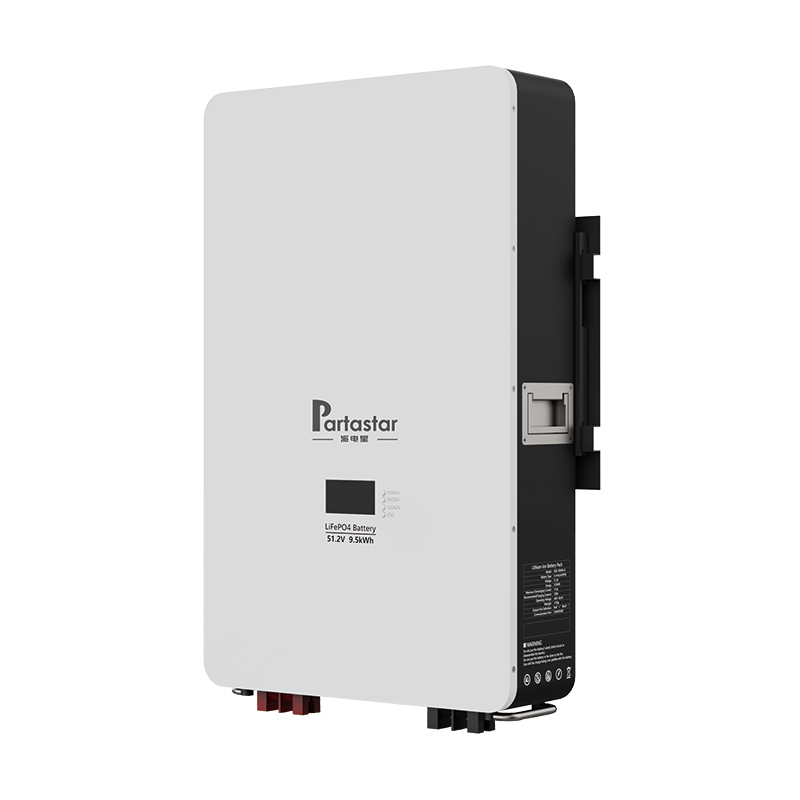

Partastar Wall-Mounted LiFePO4 Battery Pack High Capacity 9.5KWh 51.2V
The Partastar wall-mounted LiFePO4 battery, with a capacity of 9.5kWh, delivers efficient energy storage and stable performance. It features advanced lithium iron phosphate technology, ensuring long cycle life and reliable charging-discharging.
Product Parameters
| Technical Specification | |
|---|---|
| Product specifications: |
9.42KWH |
| Rated power: | 5000W |
| Working voltage range: | 40V-58.4V |
| Standard charging voltage: | 58.4V30A |
| Discharge cut-off voltage: | 40V |
| Nominal voltage: | 30A |
| Maximum charging current: | 100A |
| Maximum discharge current: | 115A |
| Peak discharge current: | 300A（0.3mS） |
| Composition of battery cells: | 16S1P |
| Charging temperature: | 0~60°C |
| Discharge temperature: | -20~60°C |
| Storage temperature: | 10~45°C |
Strong manufacturers

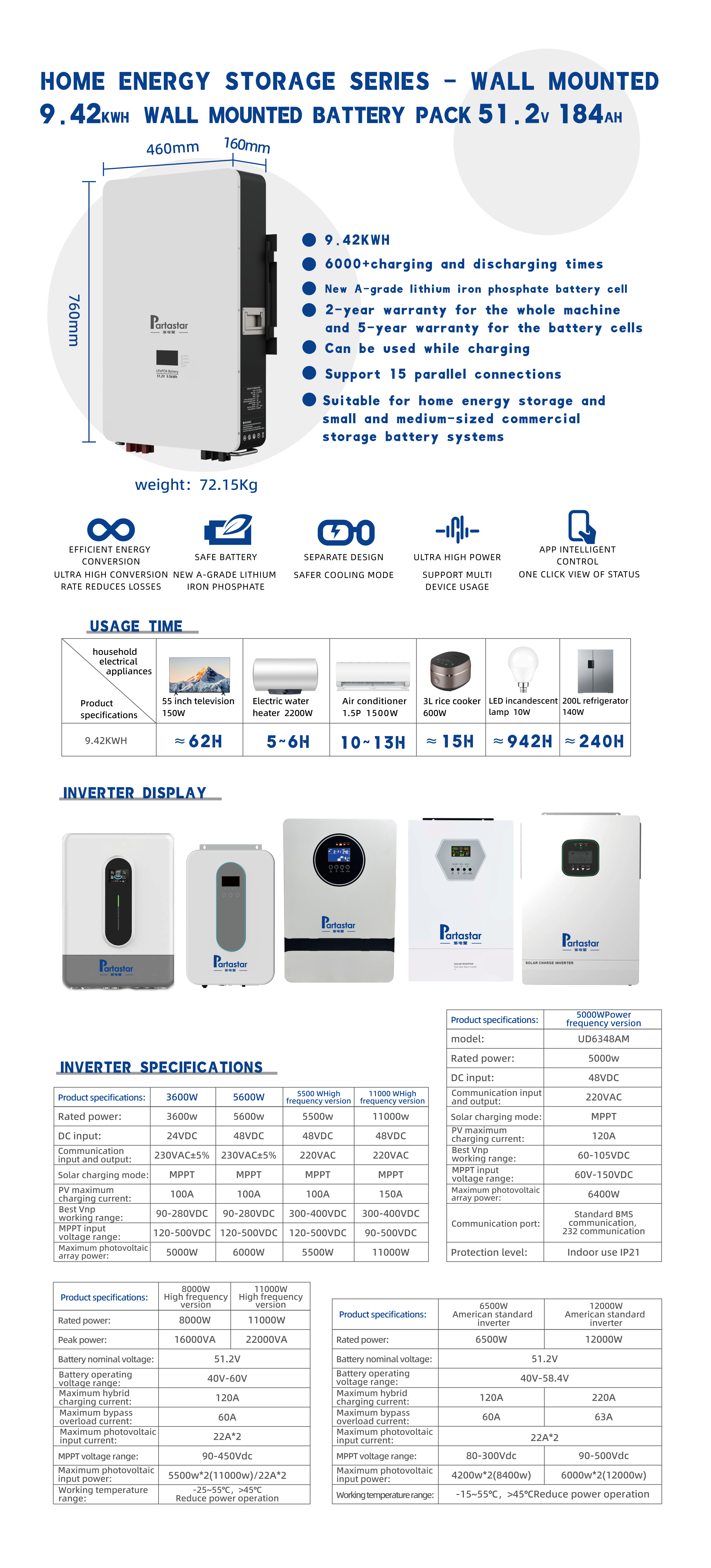

Corresponding product drawing applicable to the product (reference for power supply duration)
Qualification
EU INTELLECTUAL PROPERTYOFFICECERTIFICATE OF REGISTRATION
CERTIFICATE OF AUSTRALIA
CERTIFICATE OF PHILIPPINE
ASSURANCE
Partastar“Australia trademark”
Partastar“the Philippines trademark”
UN38.3 TCT Test Report LFP51.2V-200Ah
MSDS Report LFP51.2V-200Ah
Material Safety Data Sheet GSK-10kWh-G
FAQ
-
Qwhat is the battery of this device?
A Lithium ion battery.
-
QIs it pure sine wave or modified sine wave?
A It is pure sine wave.
-
QHow long can this equipment supply electricity?
A It depends on the power of your load equipment. It can supply electricity for4hours if the power of the equipment is 500Wh.
