Cabinet battery pack

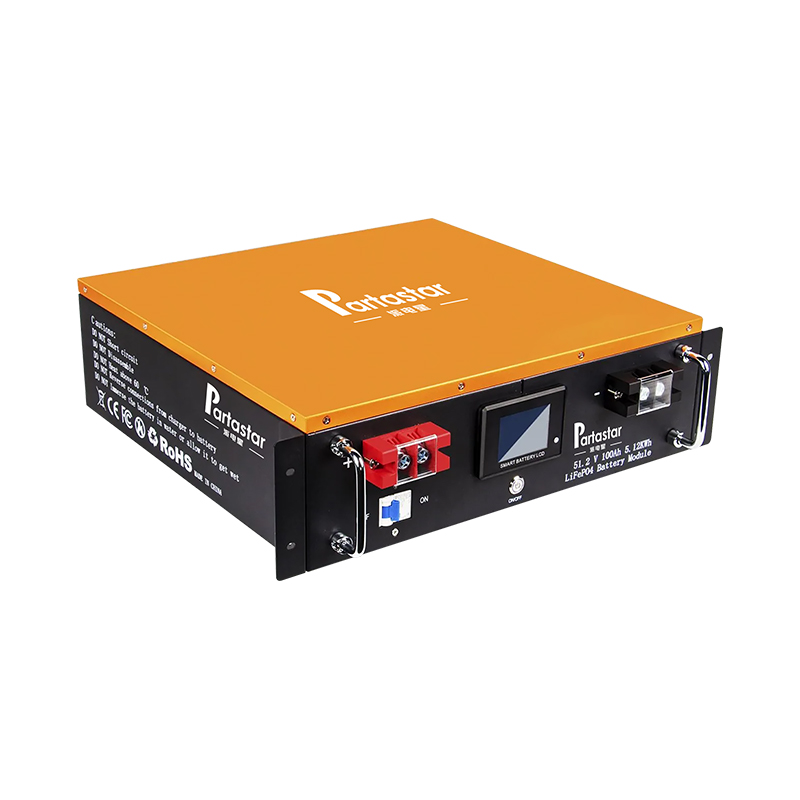

Partastar Battery Cabinet: 5.12KWH Rack-mounted Battery Pack with LiFePO4 Cells

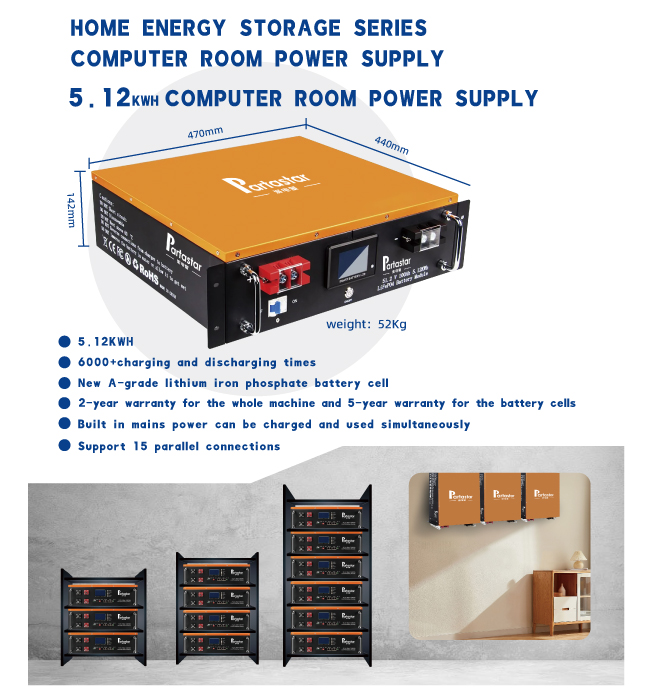

Introducing the Home Energy Storage Series Cabinet - 5.12KWH Rack-mounted Battery Pack. It features premium A-grade LiFePO4 cells, supporting over 6000 charge-discharge cycles. With a weight of 52Kg and dimensions 470mm×440mm×160mm.
Product Parameters
| Technical Specification | |
|---|---|
| Product specifications: |
5.12 KWH |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 100Ah |
| Rated power: | 5120W |
| Standard charging voltage: | 58.4V |
| Discharge cut-off voltage: | 40V |
| Standard charging current: | 50A |
| Maximum charging current: | 100A |
| Maximum constant discharge current: |
100A |
| Peak discharge current: | 120A @30s |
| Size: | 470*440*142mm |
| Weight: | 52kg |
| Cycle life: | 6000+ |
| Charging temperature: | 0~60 °C |
| Emission temperature: | -20~ 60°C |
| Storage temperature: | 10~ 45°C |
Strong manufacturers
Corresponding product drawing applicable to the product (reference for power supply duration)
Qualification
EU INTELLECTUAL PROPERTYOFFICECERTIFICATE OF REGISTRATION
CERTIFICATE OF AUSTRALIA
CERTIFICATE OF PHILIPPINE
ASSURANCE
Partastar“Australia trademark”
Partastar“the Philippines trademark”
UN38.3 TCT Test Report LFP51.2V-200Ah
MSDS Report LFP51.2V-200Ah
Material Safety Data Sheet GSK-10kWh-G
FAQ
-
Qwhat is the battery of this device?
A Lithium ion battery.
-
QIs it pure sine wave or modified sine wave?
A It is pure sine wave.
-
QHow long can this equipment supply electricity?
A It depends on the power of your load equipment. It can supply electricity for4hours if the power of the equipment is 500Wh.
