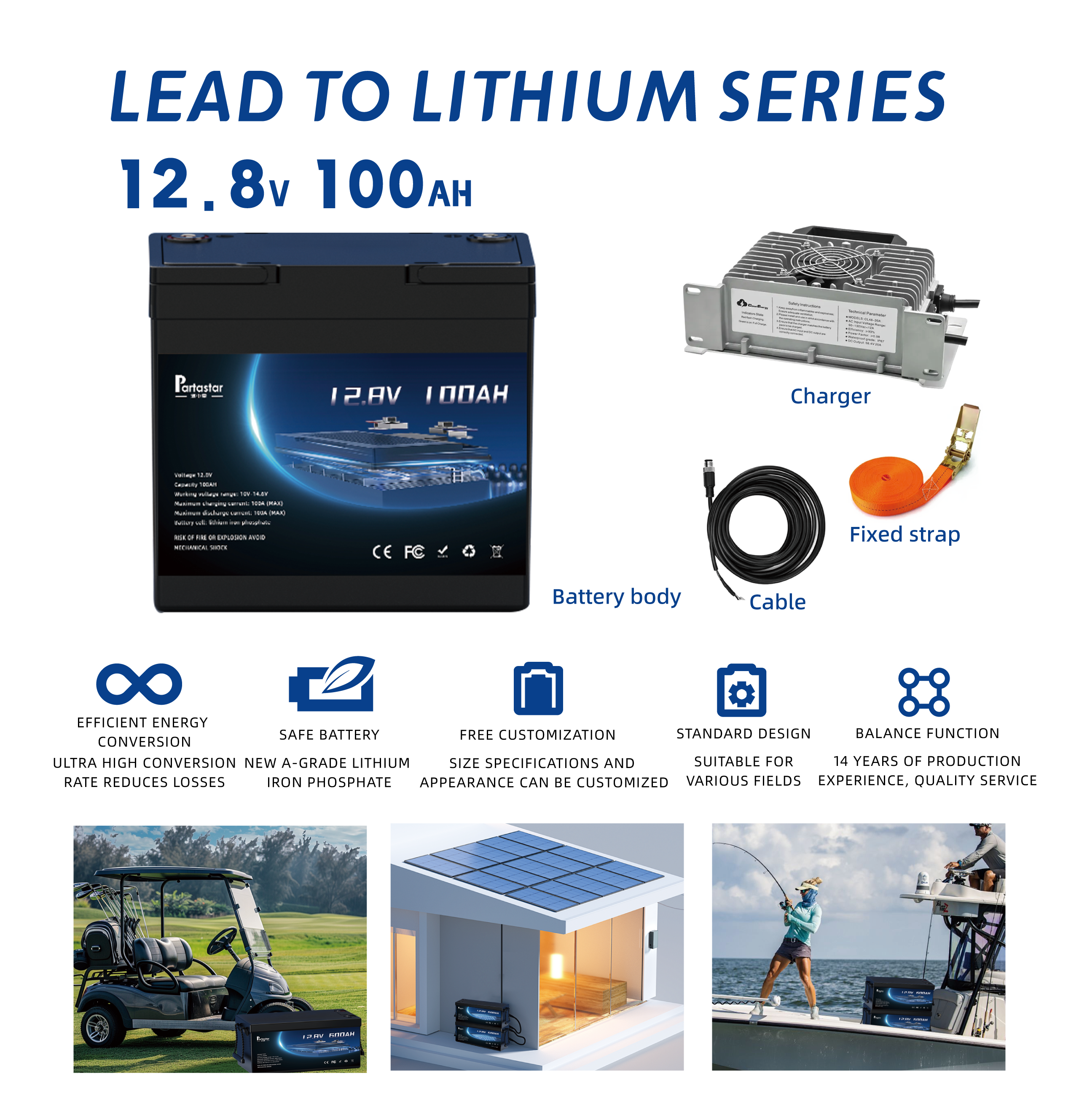

Lead to lithium series

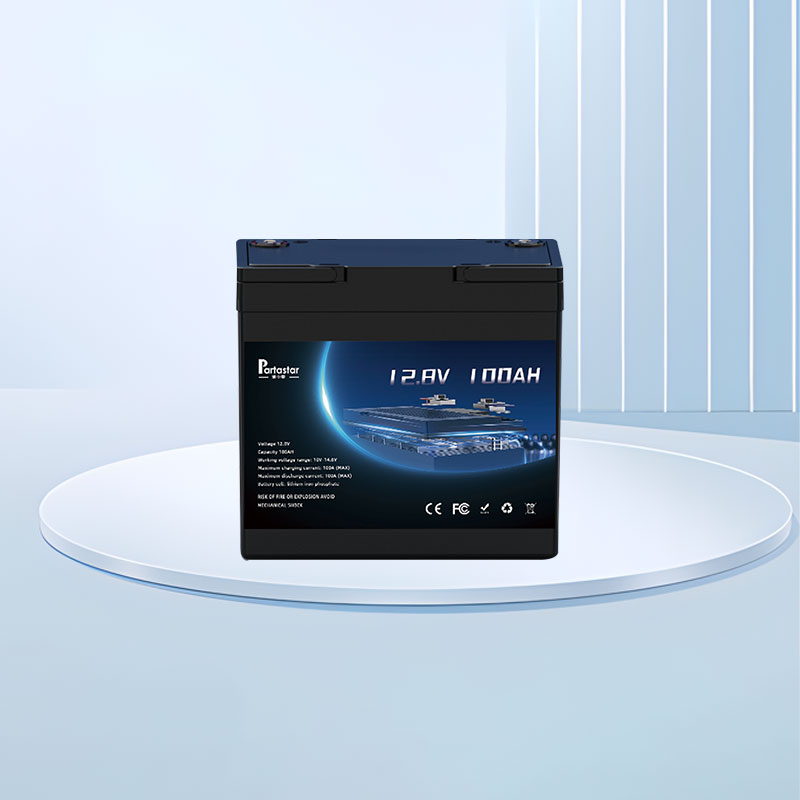

Partastar 12.8V 100Ah Lithium Iron Phosphate Battery High Capacity Long Lasting
This 12.8V 100Ah lithium iron phosphate (LiFePO₄) battery is a high - capacity energy storage solution. It features a durable design, with a working voltage range of 10V - 14.6V. The battery supports a maximum charging current of 100A (MAX).
Product Parameters
| Technical Specification | |
|---|---|
| Battery energy: | 1.28KWH |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 100Ah |
| Working voltage range: | 10V-14.6V |
| Standard charging voltage: | 14.6V |
| Discharge cut-off voltage: | 10V |
| Standard charging current: | 30A |
| Maximum charging current: | 100A |
| Maximum discharge current: | 100A |
| Peak discharge current: | 120A(30S) |
| Cell type: | Lithium iron phosphate |
| Composition of battery cells: | 100Ah/4S1P |
| Cycle life: | 6000+次 |
| Charging temperature: | 0~60°C |
| Discharge temperature: | -20~60°C |
| Storage temperature: | 10~45°C |
Strong manufacturers
Corresponding product drawing applicable to the product (reference for power supply duration)
Qualification
EU INTELLECTUAL PROPERTYOFFICECERTIFICATE OF REGISTRATION
CERTIFICATE OF AUSTRALIA
CERTIFICATE OF PHILIPPINE
ASSURANCE
Partastar“Australia trademark”
Partastar“the Philippines trademark”
UN38.3 TCT Test Report LFP51.2V-200Ah
MSDS Report LFP51.2V-200Ah
Material Safety Data Sheet GSK-10kWh-G
FAQ
-
Qwhat is the battery of this device?
A Lithium ion battery.
-
QIs it pure sine wave or modified sine wave?
A It is pure sine wave.
-
QHow long can this equipment supply electricity?
A It depends on the power of your load equipment. It can supply electricity for4hours if the power of the equipment is 500Wh.
